The Complete Buyer's Guide to Laser-Cut Metal Panels in Singapore

Custom Laser Cut Metals Singapore

Laser-cut metal panels occupy a unique space in the architectural metals landscape. They offer a level of design freedom that other types of metal panels simply cannot match: almost any shape, pattern, or geometry can be cut from a flat metal sheet, with clean edges and tight tolerances, ready to install. For architects, interior designers and contractors in Singapore, that makes laser cutting an increasingly important tool.

This guide covers everything you need to know before placing an order — materials, thicknesses, file requirements, finishes, lead times, typical applications, and how laser-cut panels compare to the alternatives.

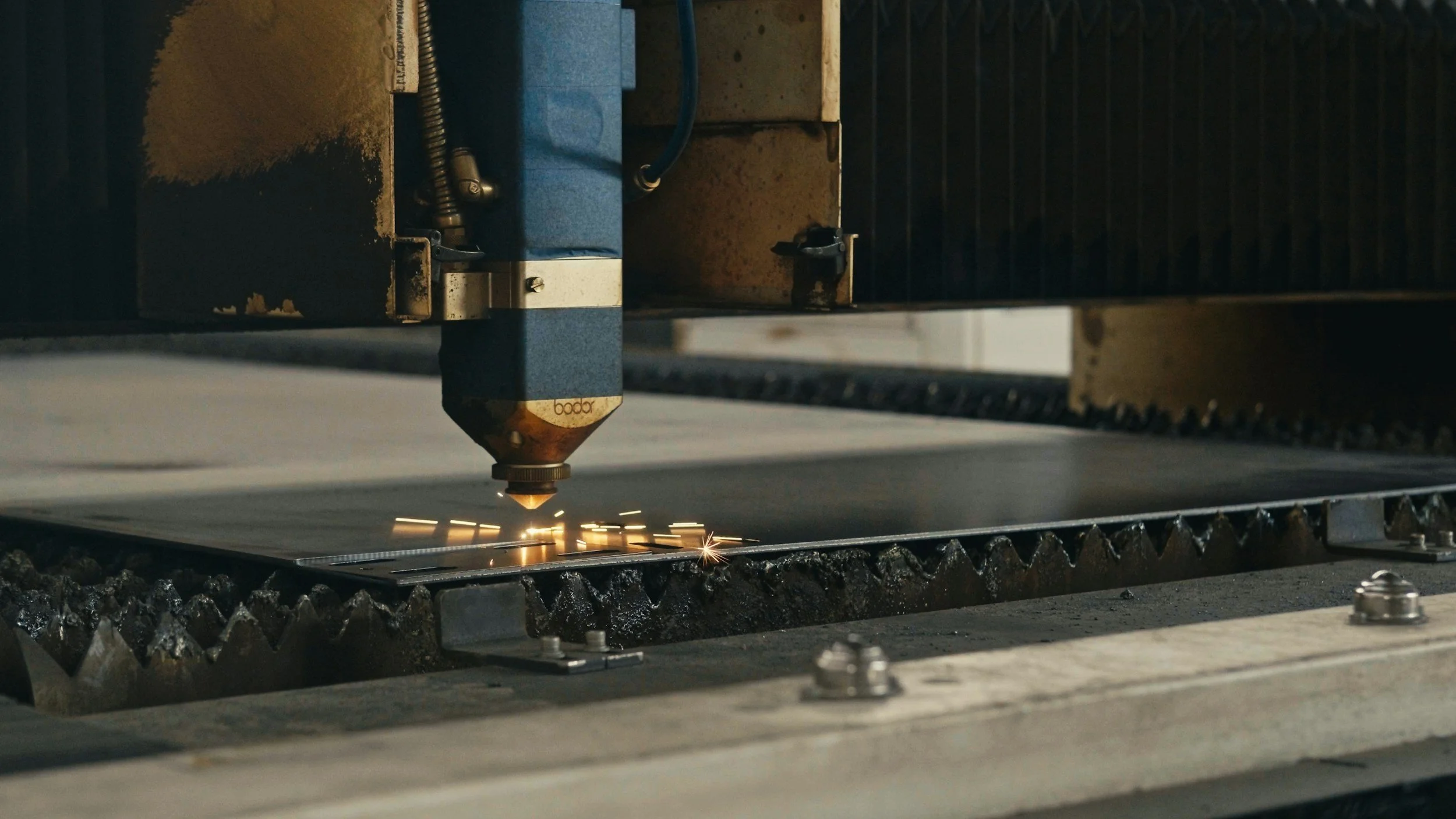

What Is CNC Laser Cutting?

CNC (Computer Numerical Control) laser cutting uses a high-powered laser beam, guided by a computer-controlled cutting head, to cut precise shapes and patterns from flat metal sheets. The laser melts or vaporises the metal along a programmed path, leaving a clean, burr-free edge with no mechanical force applied to the sheet.

Because the cutting path is entirely software-driven, the process can reproduce virtually any geometry: straight lines, curves, intricate patterns, fine perforations, lettering, and custom shapes — all from a digital drawing file. There are no tooling dies to produce, no minimum order quantities tied to tooling costs, and no geometric constraints imposed by the manufacturing process itself.

This is what separates laser cutting from perforated metal (which requires a physical punch die) and expanded metal (which is limited to diamond-pattern meshes). If your design lives in a vector file, laser cutting can produce it.

What Materials Can Be Laser Cut?

Supply Bay's CNC laser cutting service covers four material groups:

• Aluminium

  Lightweight and naturally corrosion-resistant, aluminium is an excellent choice for facade panels where weight loading is a concern — particularly on high-rise cladding, canopy soffits, or suspended ceiling systems. It cuts cleanly and accepts powder coating and PVDF coating well, offering a wide range of colour and finish options.

  Maximum cutting thickness: 12mm

• Mild steel

  The most cost-effective option for laser cutting. Mild steel cuts cleanly at high speeds and is suitable for interior applications, sheltered exterior use, and structural components. For Singapore's outdoor environment, mild steel laser-cut panels should be powder coated or galvanised — bare mild steel will rust quickly in high humidity.

  Maximum cutting thickness: 25mm

• Galvanised steel (GI)

  Hot-dip galvanised steel offers good corrosion protection at a lower cost than stainless, making it suitable for industrial and semi-exposed applications where aesthetics are secondary to performance. Less commonly used for decorative architectural panels, but appropriate for functional screening, plant enclosures, and industrial components.

  Maximum cutting thickness: 25mm

• Stainless steel (SS304 and SS316)

  The preferred material for architectural applications in Singapore, particularly where the panel will be exposed to weather, cleaning chemicals, or coastal air. SS304 is appropriate for most sheltered and semi-exposed locations; SS316 — with its higher molybdenum content — is recommended for coastal projects or applications where salt-laden air is a factor.

  Stainless steel laser-cut panels can be left in a natural 2B or brushed No. 4 finish, or powder coated for colour. The material's corrosion resistance makes it particularly well-suited to Singapore's humidity without requiring additional treatment for most applications.

  Maximum cutting thickness: 20mm

Tolerances and Sheet Sizes

Supply Bay's laser cutting achieves an accuracy of ±0.1mm — precise enough for the vast majority of architectural, joinery, and engineering applications.

Maximum sheet size is 3000mm × 1500mm. Panels larger than this can be produced by joining sections together through our fabrication services — contact us to discuss feasibility for oversized requirements.

For most Singapore architectural projects, panels are cut from standard-size sheets and positioned and fixed on site. For larger continuous facades, panels can be designed with expressed joint lines that align naturally with the sheet dimensions.

File Formats: What You Need to Submit

Laser cutting is a file-driven process. Supply Bay accepts vector drawing files in the following formats:

• DXF (most common — compatible with AutoCAD, Rhino, and most CAD platforms)

• DWG

A few things to check before submitting your file:

• All cutting lines should be vector paths, not rasterised. Bitmap images (JPEGs, PNGs) cannot be used directly for cutting — they need to be traced and converted to vector first.

• Indicate material, thickness, and quantity clearly. If your drawing contains multiple parts or panel types, label each one. This prevents errors and speeds up quoting.

• Check your scale. Files should be submitted at 1:1 (full scale). If your file is at a reduced scale, note the ratio clearly.

• Folded or bent parts need flat DXF files. If your panel will be bent after cutting, the file should show the flat-cut pattern (the unfolded geometry), not the finished 3D shape.

If you are unsure about any of this, our team can advise.

Surface Finishes for Laser-Cut Metal Panels

The right finish depends on the application environment, the aesthetic requirement, and the base material.

• Mill finish (natural)

  Suitable for interior applications or prototyping. Stainless steel and aluminium panels are often left in natural mill finish for clean, contemporary interiors.

• Powder coating

  The most common finish for architectural laser-cut panels in Singapore. Powder coating provides a durable, UV-resistant colour finish in a virtually unlimited palette. Suitable for mild steel, aluminium, and stainless steel.


• PVDF coating

  A higher-performance fluoropolymer coating offering superior fade resistance and chemical resistance compared to standard powder coat. Typically specified for high-rise facade panels and projects with long maintenance intervals. More commonly used on aluminium.


• Hot-dip galvanising

  Applied to mild steel before or after cutting, providing a zinc coating that resists corrosion. Practical for industrial and infrastructure applications; less common for decorative architectural panels due to the spangled surface texture.


• Brushed / No. 4 finish (stainless steel)

  A linear brushed texture applied to stainless steel. Popular in contemporary commercial and retail interiors for its refined, directional appearance. Can be specified on panels prior to cutting.


Common Applications in Singapore

Laser-cut metal panels are used across a remarkably wide range of project types in Singapore. Some of the most common applications we see:

• Architectural facades and cladding

  Custom-pattern panels used as rain screens, decorative cladding layers, or solar shading elements on commercial and mixed-use buildings. The ability to specify custom perforation patterns — rather than being limited to standard round or square holes — allows architects to integrate patterning as a deliberate design statement.

• Interior screens and room dividers

  Laser-cut panels are widely used in Singapore's F&B, hospitality, and corporate fitout sectors as decorative screens, partitions, and feature walls. The material brings warmth and texture to spaces without blocking light entirely, and can be backlit for dramatic effect.

• Retail and shopfront displays

  Custom cut-out lettering, logo panels, and decorative fixtures for shopfronts and retail interiors. Stainless steel and aluminium are popular choices for the durability they offer in high-traffic retail environments. → View our Aesop retail store project.


• Signage and wayfinding

  Precision-cut stainless or aluminium lettering and wayfinding elements for building lobbies, commercial spaces, and public areas.

• Acoustic panels

  Pattern-based laser cutting can be used to create perforated metal acoustic panels, where the percentage of open area is calibrated to achieve target absorption coefficients. Commonly used in offices, conference rooms, and hospitality spaces.

• Ceiling grilles and soffit panels

  Lightweight aluminium laser-cut panels for suspended ceiling systems, HVAC grilles, and soffit cladding — particularly in commercial and institutional projects.

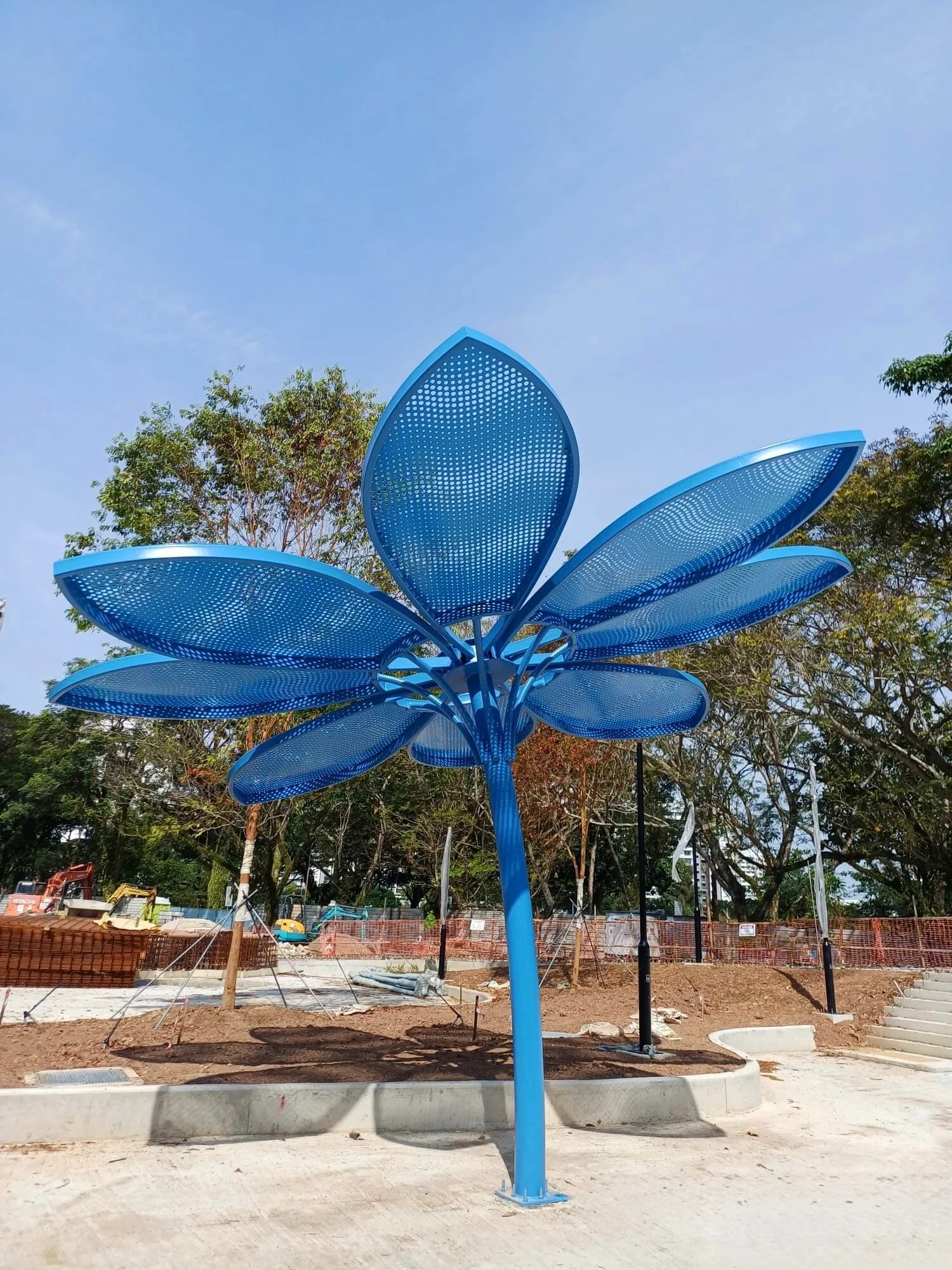

Project Spotlight: Sun Plaza Park, Tampines

Sun Plaza Park is one of Singapore's most distinctive inclusive playground projects — a collaboration between the National Parks Board and the Magical Bridge Foundation to create a fully accessible public play environment.

Supply Bay supplied custom laser-cut panels across multiple elements of the playground. The brief called for panels that could do several things at once: carry a strong visual identity through custom patterning, meet the safety and durability requirements of a high-traffic public outdoor environment, and hold up to Singapore's year-round heat, humidity, and UV exposure without degrading.

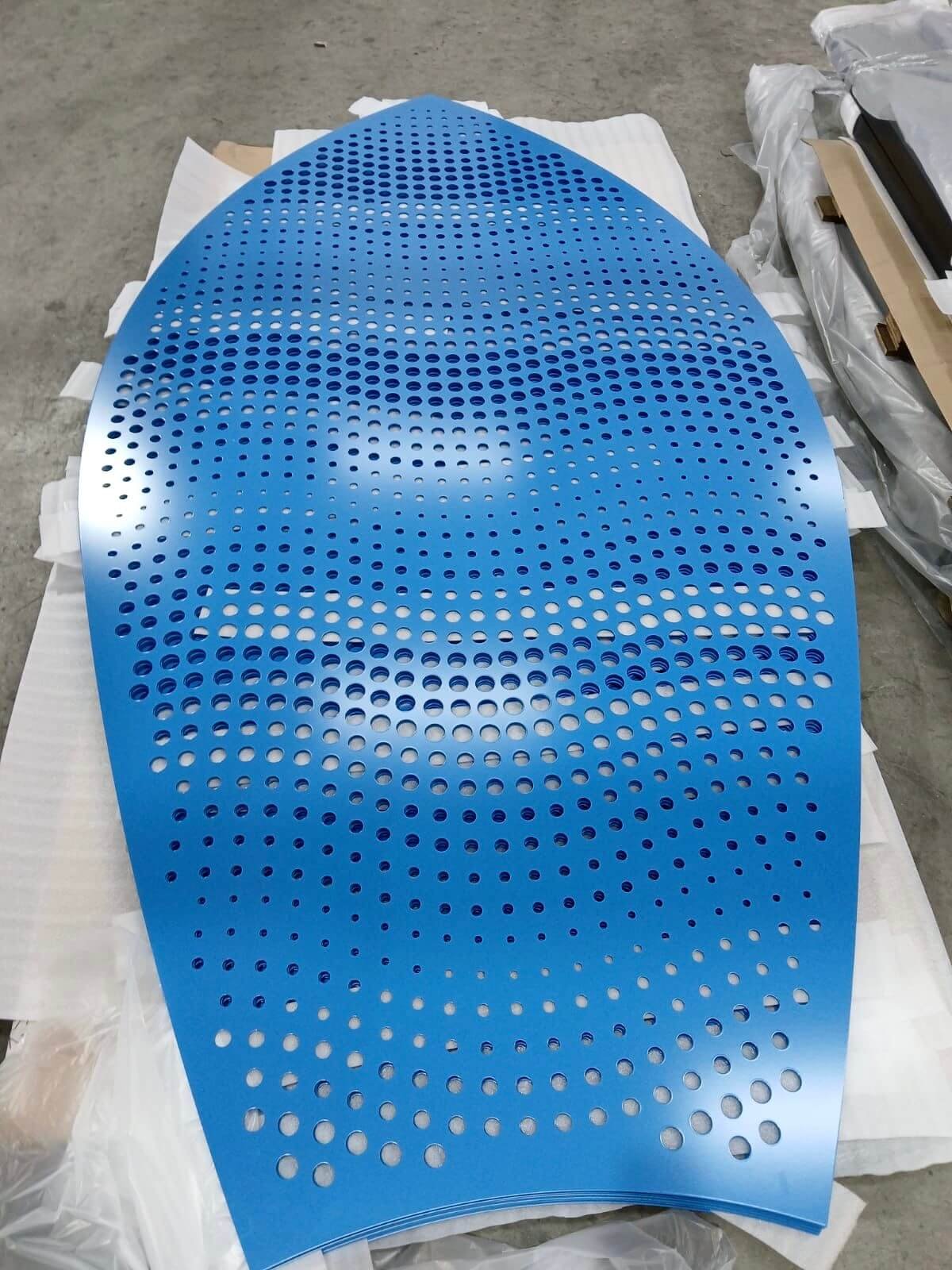

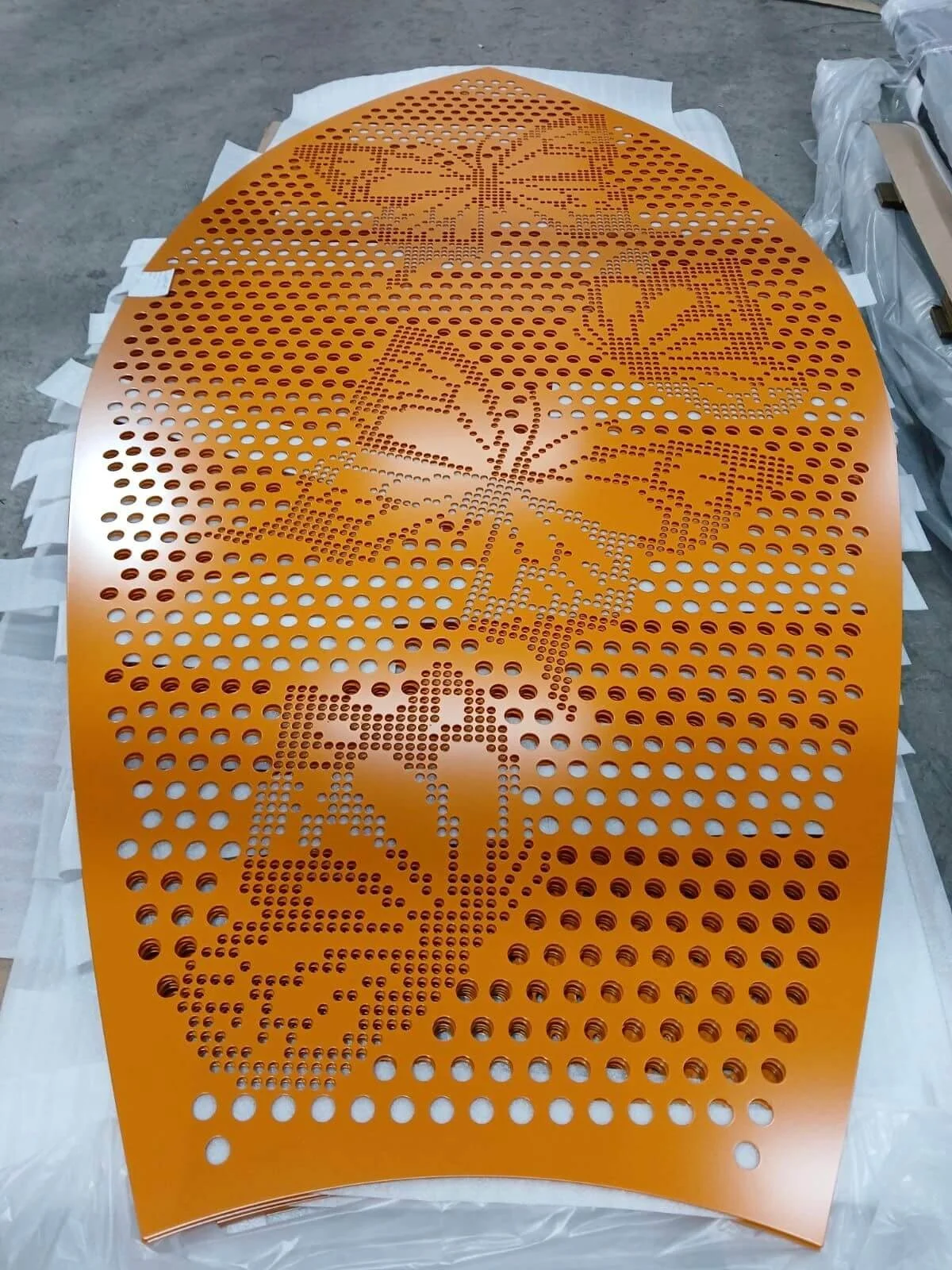

• The design challenge: The panels featured several distinct motifs — a butterfly pattern, a wave pattern, a plant pattern, and a leaf pattern — all requiring precise, repeating cut geometries across multiple panel sizes. The butterfly pattern in particular involves complex organic curves and fine internal detail; achieving consistent accuracy across every panel was essential for the visual effect to read correctly at full scale in the space.

• The material and finish rationale: Outdoor public infrastructure in Singapore demands materials that can handle prolonged UV exposure, cleaning, and physical contact without significant maintenance. The laser-cut panels were specified with a special-grade powder coating finish to meet these requirements, ensuring that the visual quality of the patterning would be preserved over the long term.

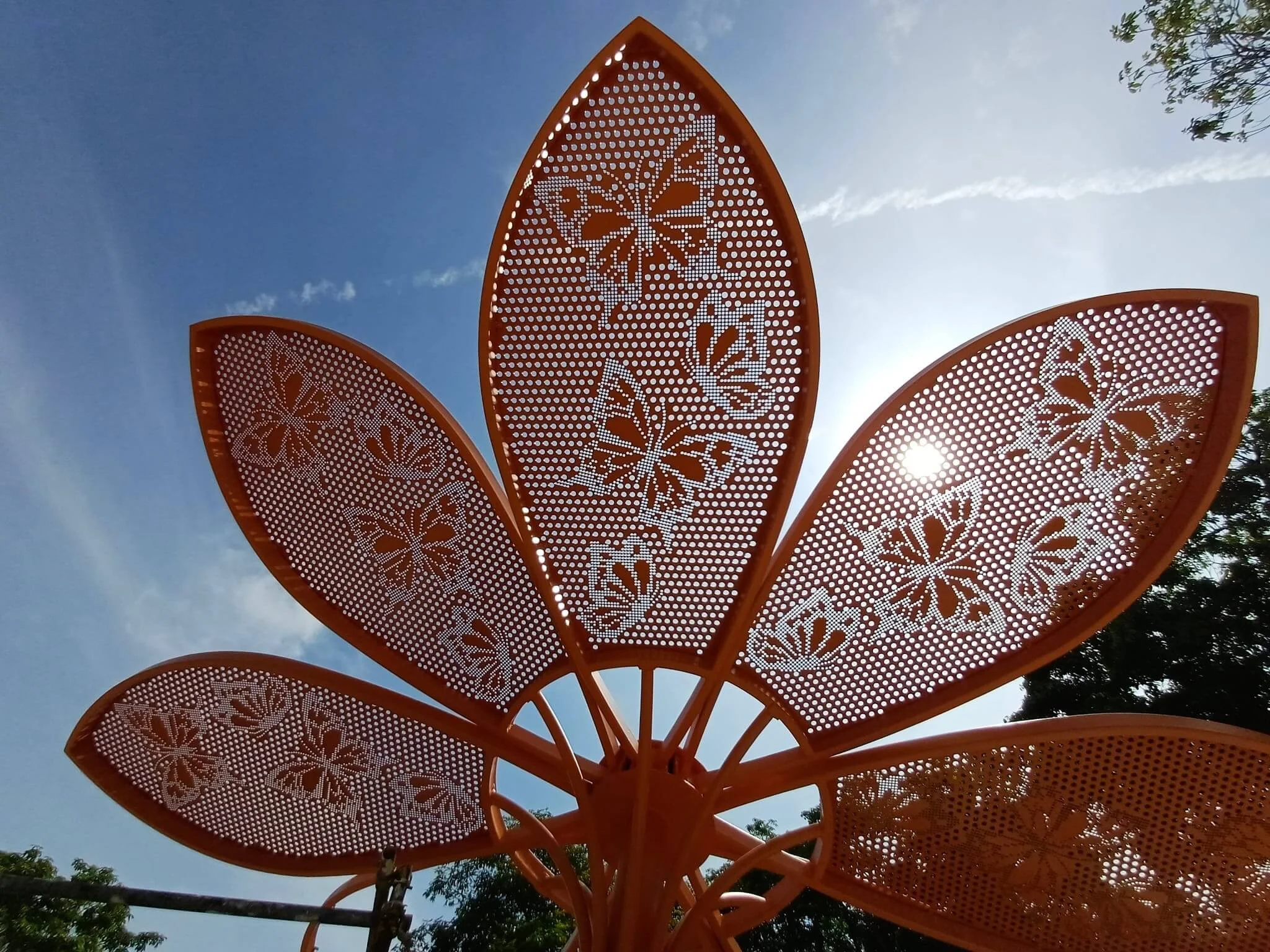

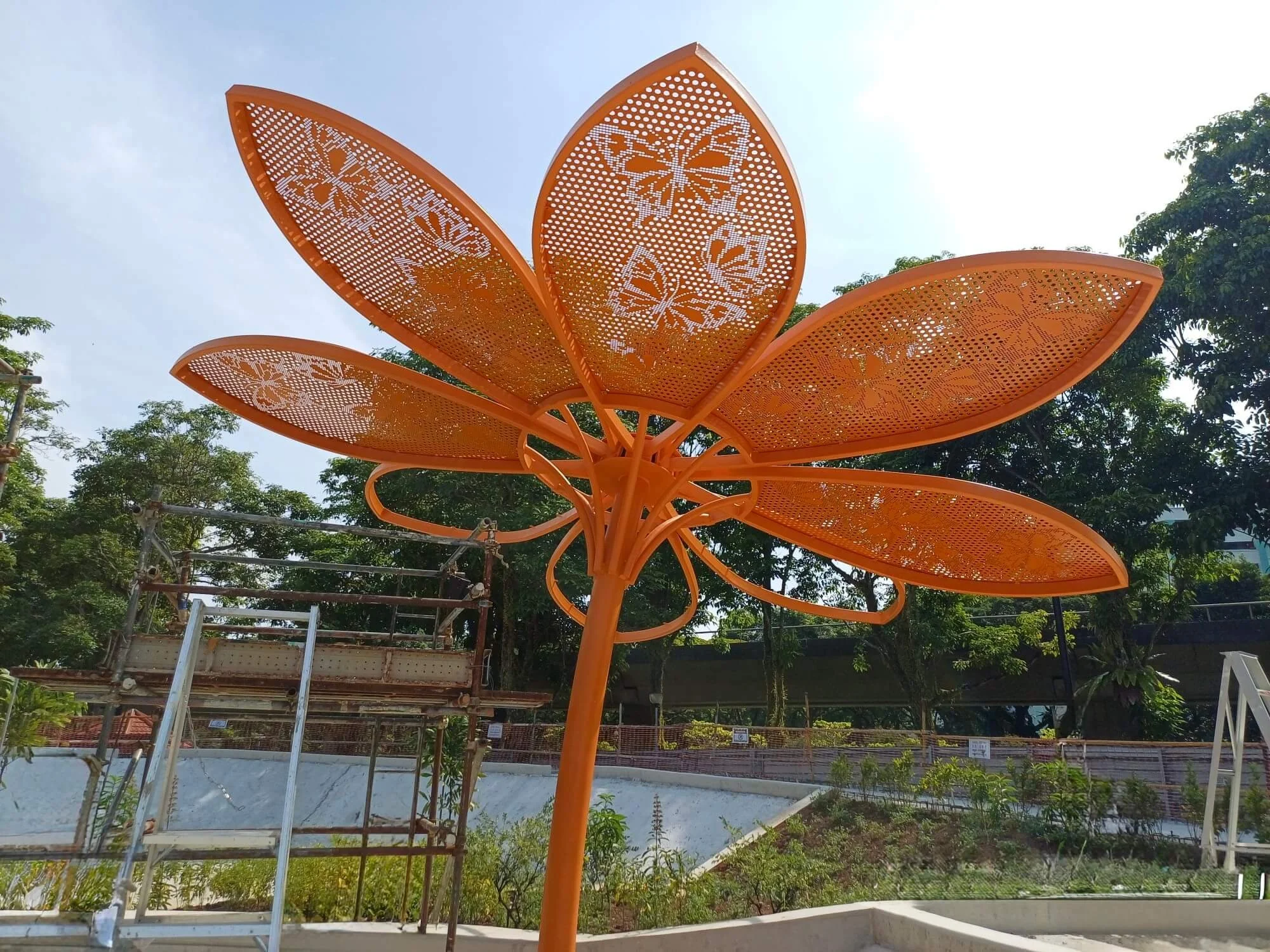

• The outcome: The finished panels bring a layered visual character to the playground environment — casting patterned shadow during the day, providing visual enclosure without blocking sightlines for supervision, and giving the space a distinctly designed identity that sets it apart from standard playground infrastructure. The project demonstrates how laser-cut metal can bridge the gap between functional public safety requirements and genuine design ambition.

→ View the Sun Plaza Park project gallery

Project Spotlight: Aesop Singapore, Thailand

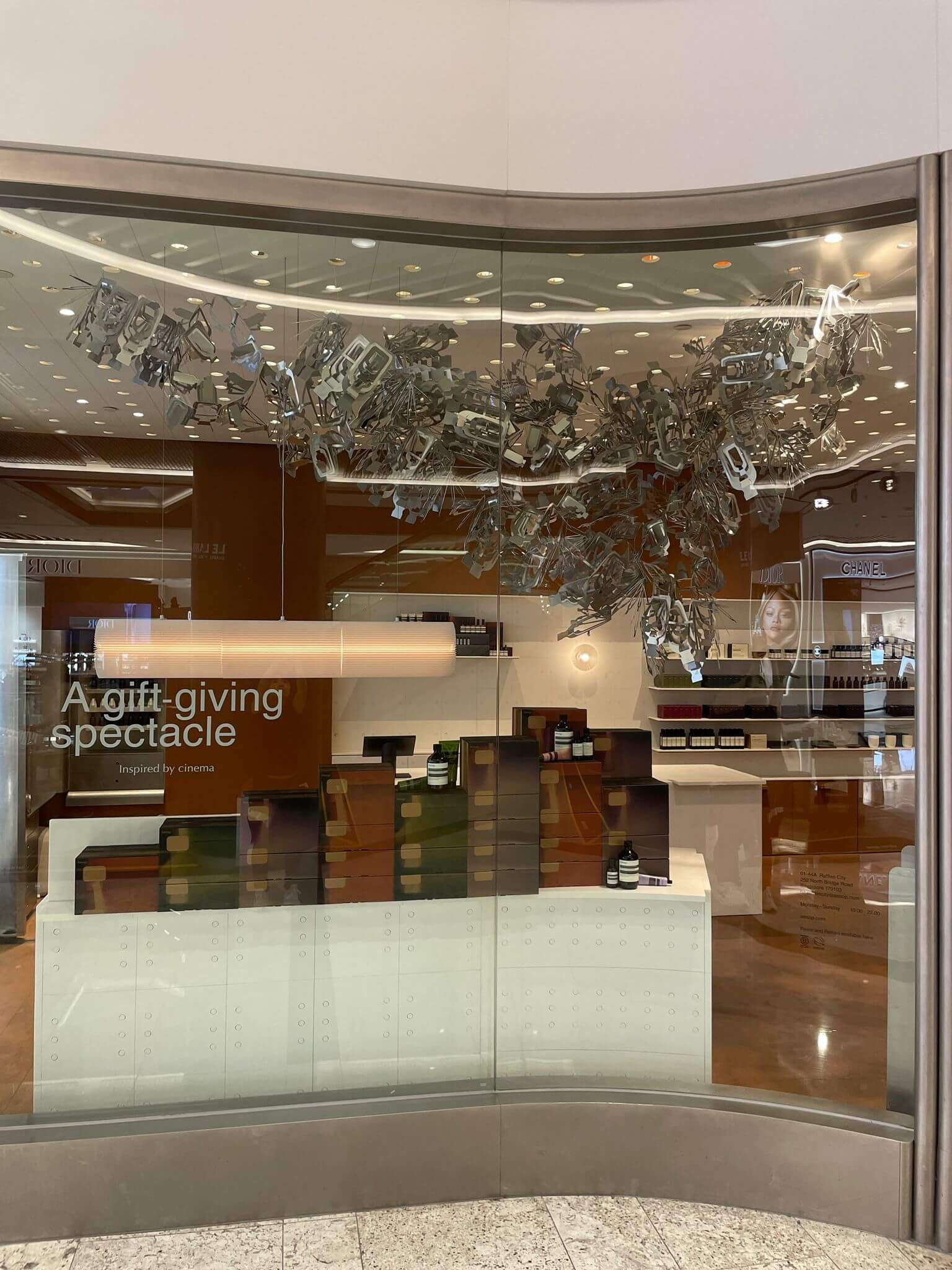

Aesop wanted to create a collection of bespoke laser-cut metal ornaments and in-store installations, developed specifically for its festive campaign, 'A Gift-Giving Spectacle'. Each piece was designed to complement Aesop's signature aesthetic — refined and artisanal.

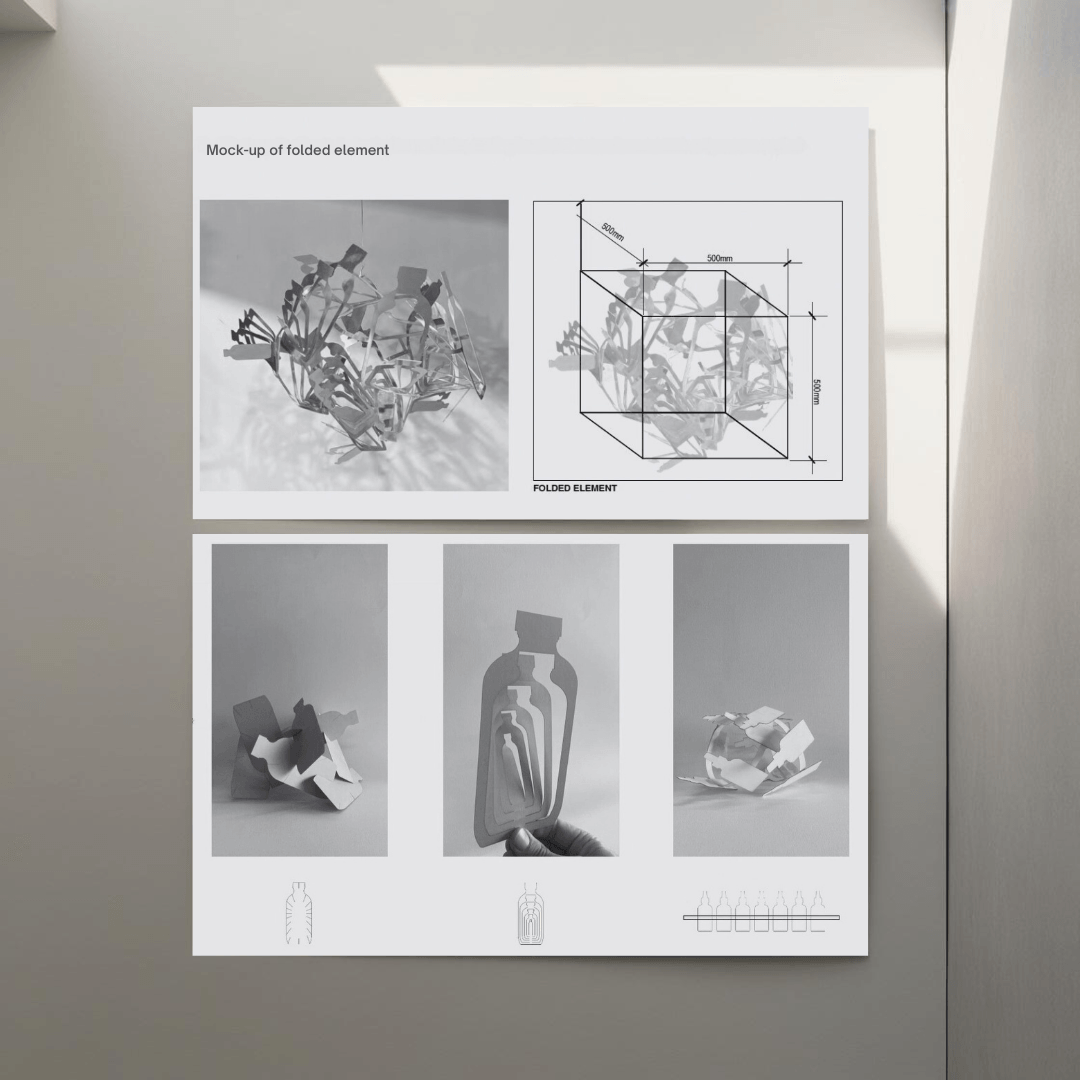

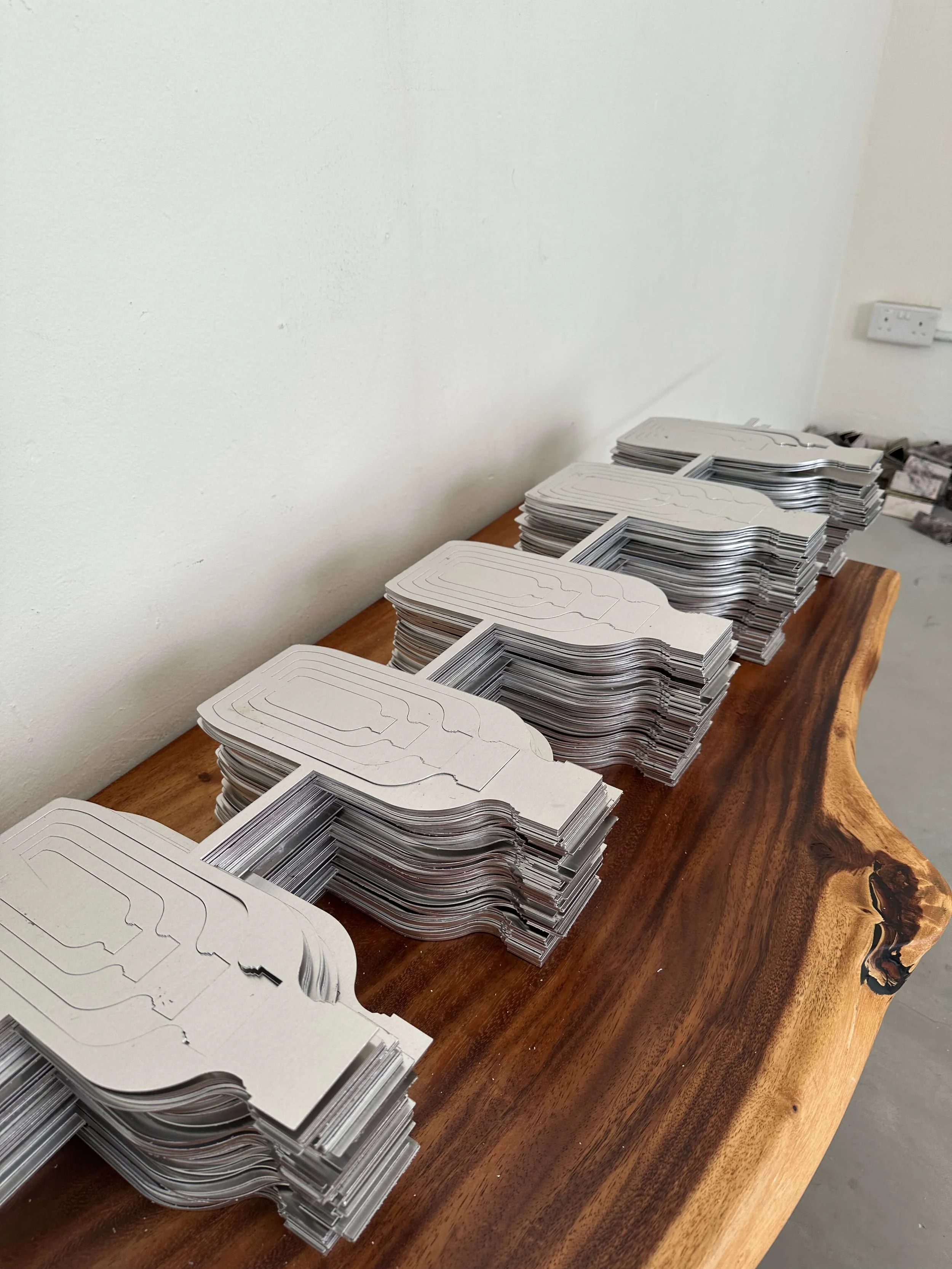

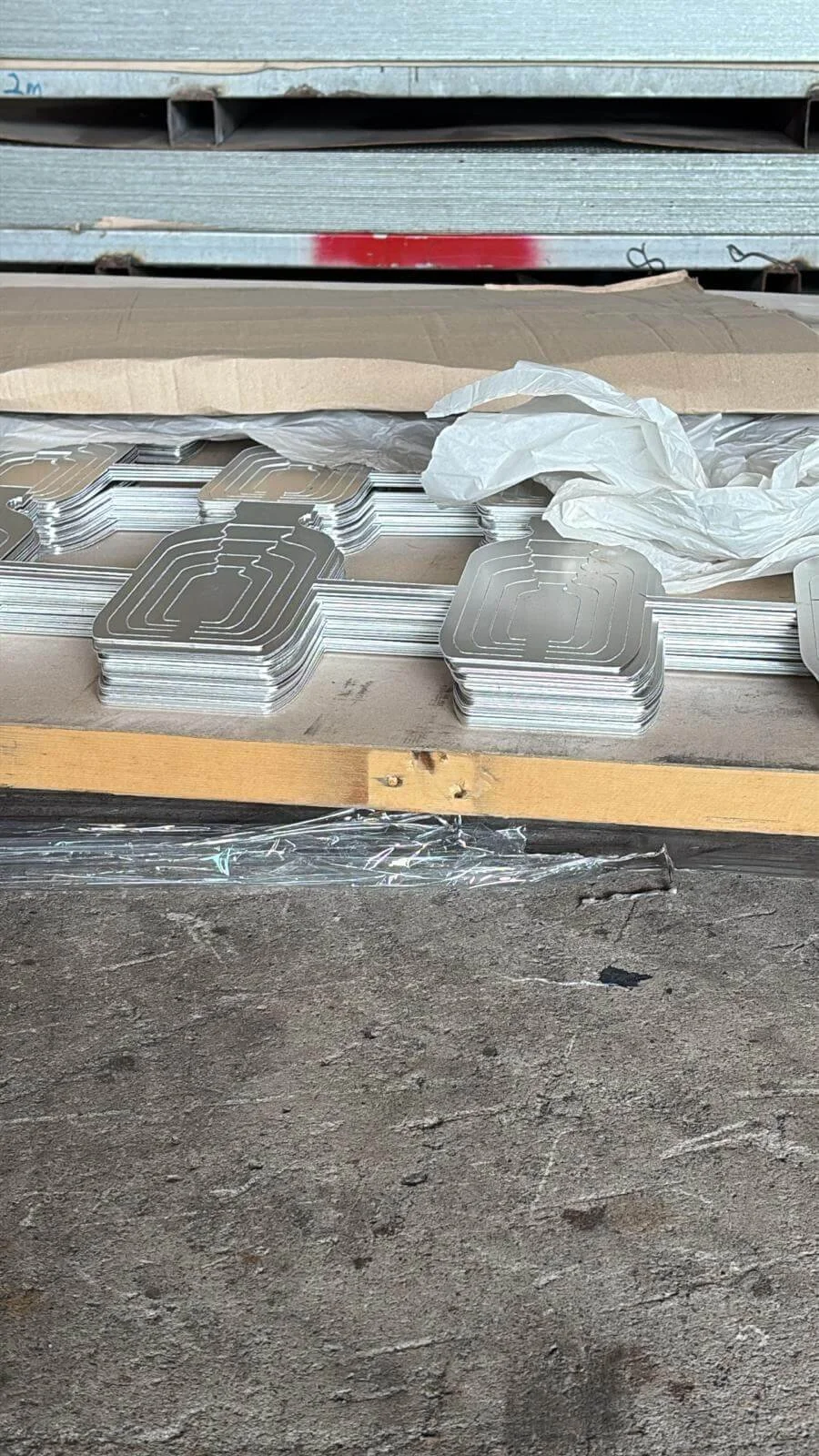

• From concept to creation. Supply Bay worked closely with the Aesop team through the development process — from reviewing the initial design intent through to finalising the cutting files and confirming material and finish specifications. The result was a collection of metal pieces that carry the weight and tactility of well-made objects, with cut edges clean enough to sit alongside Aesop's meticulously considered product presentation.

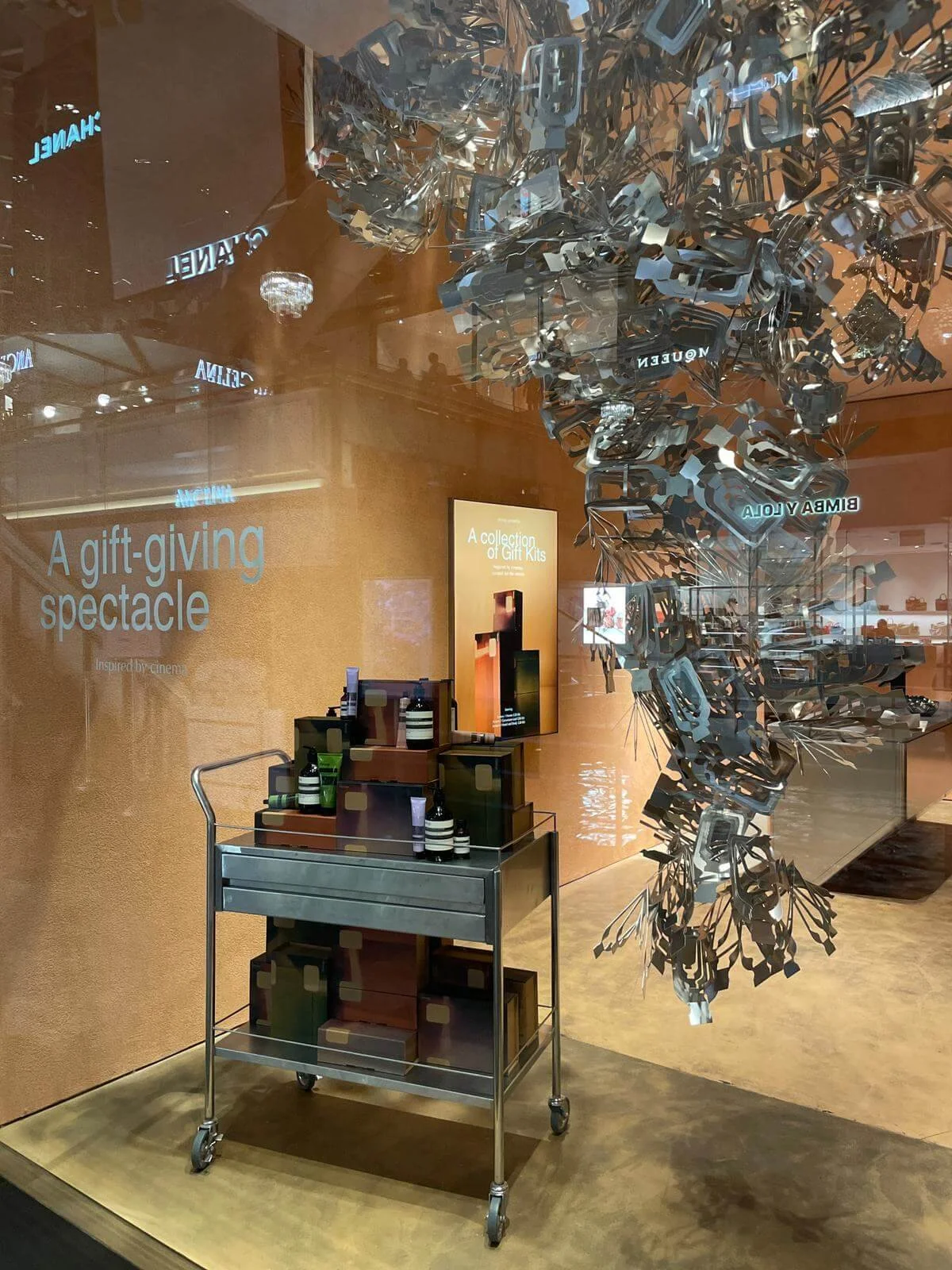

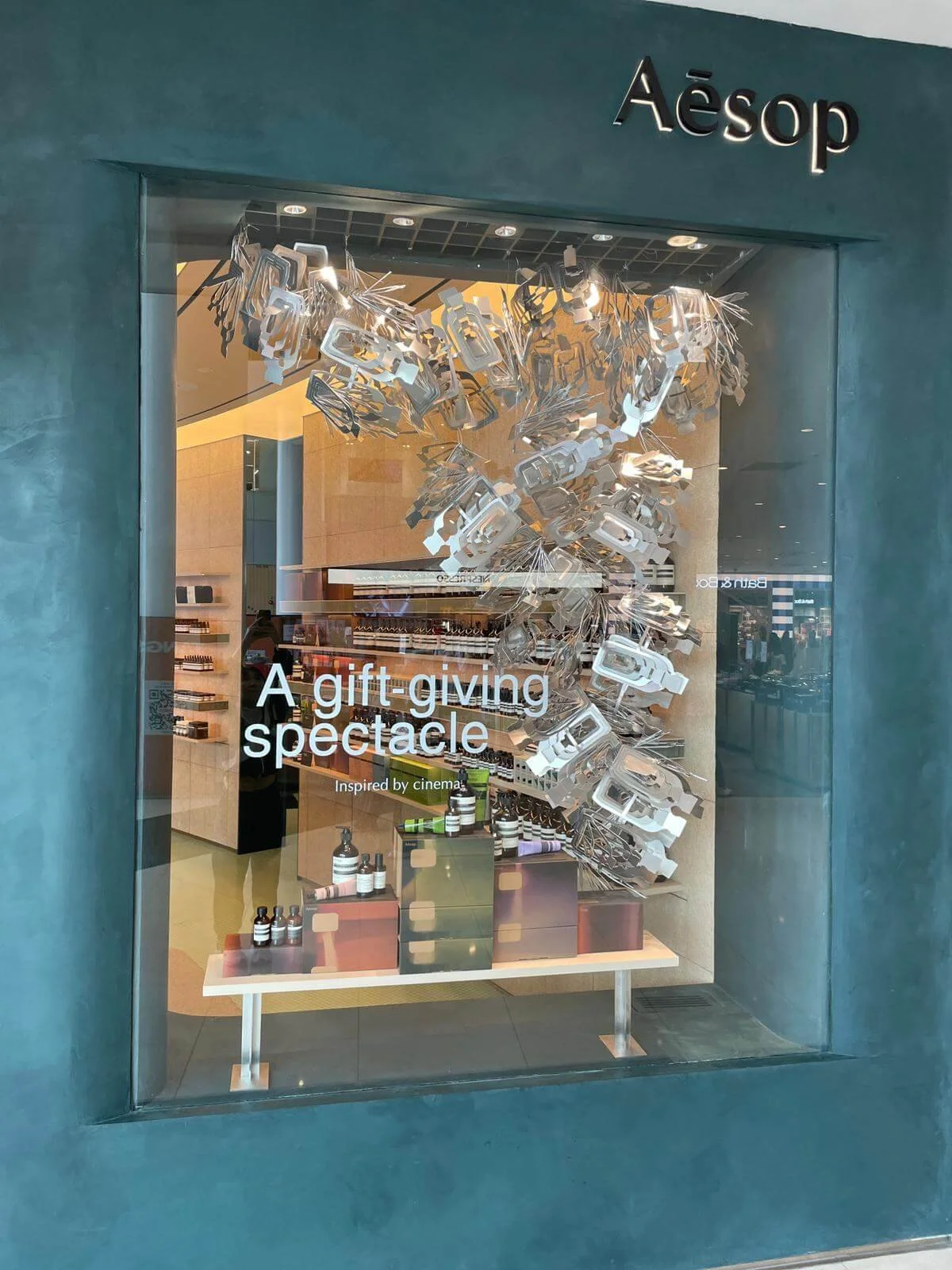

• The outcome. Installed across Aesop's Singapore and Thailand stores for the festive season, the laser-cut pieces elevated the retail environment in exactly the way the brief intended — adding a layer of bespoke craftsmanship that reinforced the brand's commitment to detail. The campaign demonstrated something Supply Bay sees regularly in high-end retail work: when the brief demands artistry and the execution demands precision, laser cutting is the process that bridges both.


Ready to Start Your Laser Cutting Project in Singapore?

Supply Bay's CNC laser cutting service is available for architectural, commercial, industrial, and residential projects across Singapore.

Standard laser cutting at Supply Bay takes 5–7 working days from approved file, depending on material type, thickness, and job complexity. Projects requiring additional fabrication will require additional time:

• Powder coating or PVDF coating: typically adds 3–5 working days.

• Bending or folding: quoted individually based on complexity.

• Large-volume or complex multi-part jobs: quoted individually based on complexity.
